Product Description

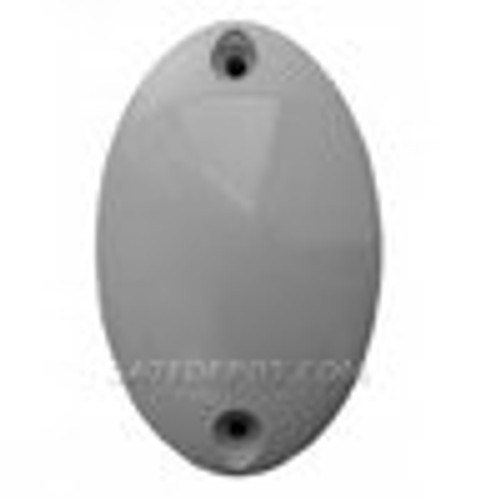

Optional items for remotes: You need 1 Receiver and 1 or more remotes. SKU: RAMremote1 and SKU: RAMreceiver

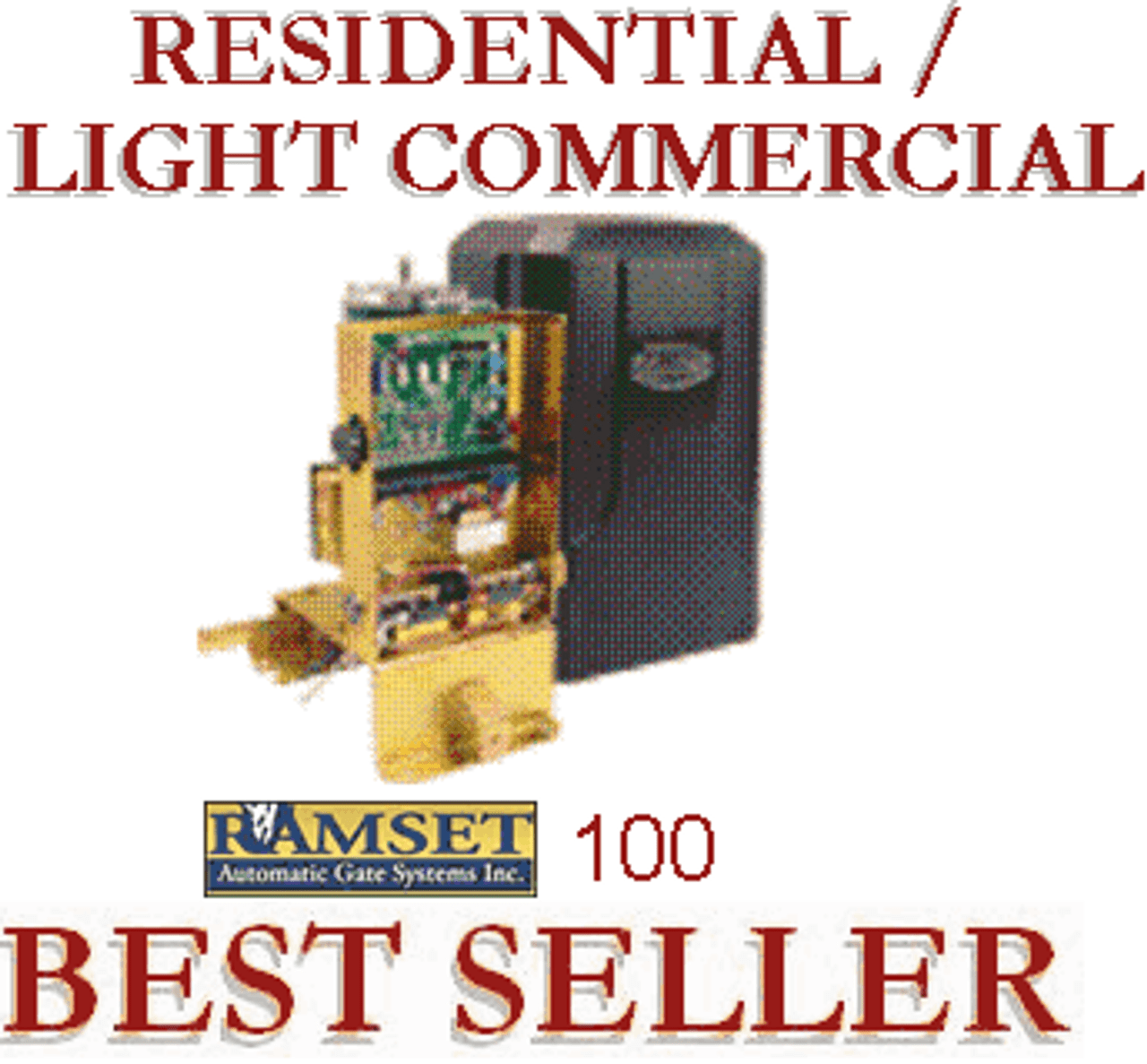

RAM 100 Residential & Light Commercial uses. Shipping Method: Select Motor Freight Maximum Gate Size & Weight: 20 Ft Long and 600 lbs. Control Board Features : easy to configure solid state board with features such as LED readouts to indicate status of operator at all times Electronic Reversing Device (ERD): two separate adjustments for reversing when encountering obstruction during opening or closing; reverses for 1 second and stops Audio Alarm: audio alarm will sound for approximately six minutes, but only when the gate hits an obstruction twice; input to reset alarm included Automatic Timer: can be set from 0 to 60 seconds Maximum Running Timer: motor shuts off after 60 seconds Master/Slave: included five wire connection to synchronize movement between two gates Electronic Inputs: for radio receiver, fire department box, numeric key pad, metal detector, center loop, telephone entry system, three button station, photo cell, safety edge and magnetic lock Mechanical Features Motor: instant reversing 1/2 HP, 120 VAC, 4.5 amp, 1625 rpm with high speed ball bearings Cycles: Continuous Duty Gate Traveling Speed: approximately 12" per second Chassis: 3/16" hot rolled metal, sanded and zinc/gold plated to inhibit corrosion Gate Stops: with electrical limit switches and rotary limit nuts Speed Reducer: high quality worm gear reducer continuously lubricated in an oil bath Cover: black heavy-duty fiberglass with high gloss finish Emergency Release: exclusive and unique foot pedal to release and disengage gate from motor 1 Receiver required for 1 or more remote transmitters
