Product Description

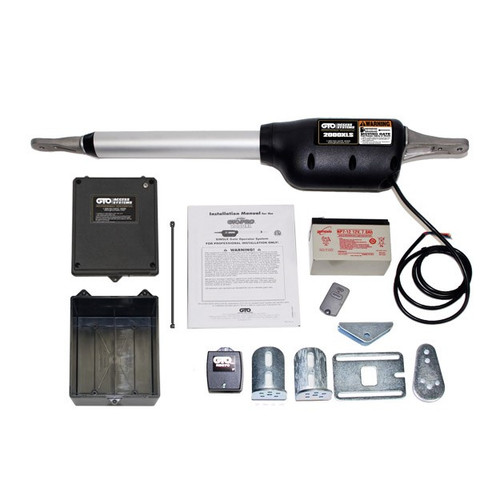

SW-4000XLS is for single swing gates at 1000 lbs and 20 ft each leaf. Pro Heavy Duty - Do it yourself, NO ELECTRICIAN or WELDER REQUIRED. Low Voltage Swing Gate Operator designed for tubular steel, vinyl, wood, or ornamental gates for residential, farm and commercial use. The SW-4000XLS is for single swing gates. This model provides a fast open/close speed from as low as 18 seconds. This system is capable of addressing single family residences or multi-family complexes of up to 20 families, and similar commercial applications. A major improvement with no price increase over the previous model. 12 volt system, no electrician needed for installation Gate will work during electrical power outage Quick and easy installation, with user friendly instructions "The Shadow" is designed to blend in with your gate Solar Panel Charger available for remote locations Will operate a gate up to 20' long and weighing up to 1000 lbs. each leaf if all proper installation procedures are followed. Note: Ball bearing hinges should be used on all gates weighing over 250 lbs (113.4kg). Can operate 100 to 150 gate cycles during peak hours of operation, depending on gate size and weight (see cycle chart link below) Control box can be mounted in protected area away from receiver (may require longer cables) Control box measures 18-1/2" high x 14-1/4" wide x 7-1/2" deep Receiver unit with antenna and 10' cable can be placed in best location for reception of signal Can be operated by remote transmitter, digital keypad, push button or combination Full systems capable "add on ready" heavy-duty control board includes adjustable obstruction sensing, gate sequencing and auto close settings (0-120 seconds) High cycle capability with true soft start and stop operation Full access ready package includes battery, radio receiver, entry transmitter, AC transformer, and all necessary mounting hardware for a standard installation Can operate as 'push to open' or 'pull to open' (specify when ordering - extra hardware required for push to open) UL rated for Class I, II, III & IV. System certified to be in compliance with UL 325, 5th edition Two-year limited warranty applies to replacing parts. EASY TO FOLLOW ACCESSORY CHART BY NUMBERS ON THE DRAWING AND PRODUCT LIST1-Transmitter | 2-Universal Receiver | 3-Interior Intercom Base Station | 4-Wireless Intercom/Keypad | 5-Digital Keypad | 6-Keypad/Intercom Pedestal | 7-Driveway Vehicle Sensor | 8-Loop Detector | 9-Push Button Control | 10-Photo Beams | 11-Automatic Gate Lock | 12-Bulldog Pedestrian Gate Lock | 13-Solar Panels | 14-Driveway Alarm | 15-Wireless Vehicle Sensor
